Product Overview

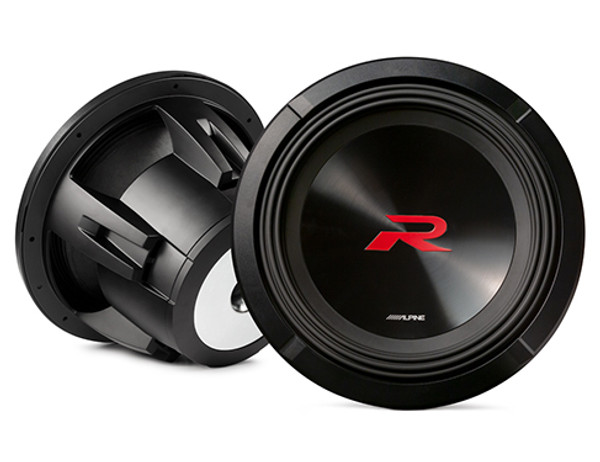

The next generation of sound performance is here with the 2nd-Gen R-Series Subwoofers featuring a larger motor structure for more accurate and authoritative bass.
Next-Gen Sound Performance
Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.
New Motor Structure
The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
Features:
- Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers
- Polypropylene/Ceramic Composite Dust Cap
- Kevlar Reinforced Pulp Cone High-Performance subwoofers
- Twist-Lock Grille Mount System
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Large Double-Stacked Magnets
What's in the Box:
- 12” R2-Series DVC Subwoofer with Cosmetic Trim Ring
- 2 Jumper Wires for DVC Configuration
- Owner’s Manual
Tech Specs
750W RMS
2250W Peak Power Handling
Frequency Response: 24Hz-200Hz
Sensitivity (1W/1m): 84.5dB
Nominal Impedance: 2Ω
Voice Coil: 65mm
X-Max: 20mm
Magnet Weight: 144oz
Mounting Depth: 6-1/2” (152mm)
Cutout Size: 10-7/8” (231mm)
Push-Type Speaker Terminals (Up to 8AWG Wire Size)
CTA-2031 Compliant
1 year warranty
