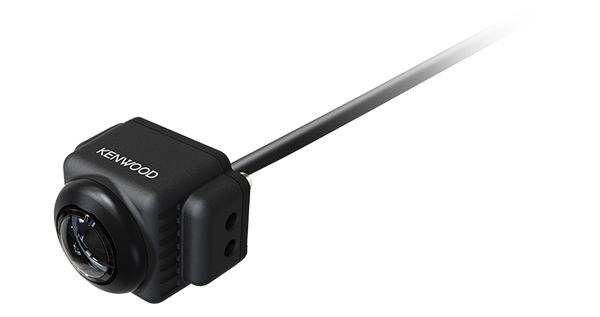

Connect the Kenwood CMOS-740HD backup cam to a compatible receiver featuring an HD monitor, and you'll enjoy an HD view when you shift into reverse. You'll see HDR-enhanced detail and smooth transitions whether it's day or night, so you'll be confident when you pull out of a space in a busy lot or back into a tight spot on a city street.
Geaneral Features:
- HD backup camera compatible
- compatible with select Kenwood car stereos
- resolution up to 720p with compatible HD monitor (not included)
- HDR-enhanced
- IP67 rated for water and dust resistance
- 1.0 Lux for excellent night vision
- 180° horizontal/103° vertical viewing angles
- composite video output
- warranty: 1 year
What's in the box:
- Rearview camera (attached 12' cable)
- 20' Extension cable
- 23" Power/ground harness
- Bracket
- 2 Machines screws (with lock and flat washers)
- Self-tapping screw
- Rubber Grommet
- Cable-tie
- Instruction Manual
- Warranty Card
HDR (High Dynamic Range)
— Reducing “Blown out Highlights” and “Crushed Blacks” —
HDR helps to reduce “blown out highlights” and “crushed blacks” and ensure clear images in challenging environments, including backlit scenes in daylight, streetlight scenes at night and places where light-dark contrast is particularly severe.

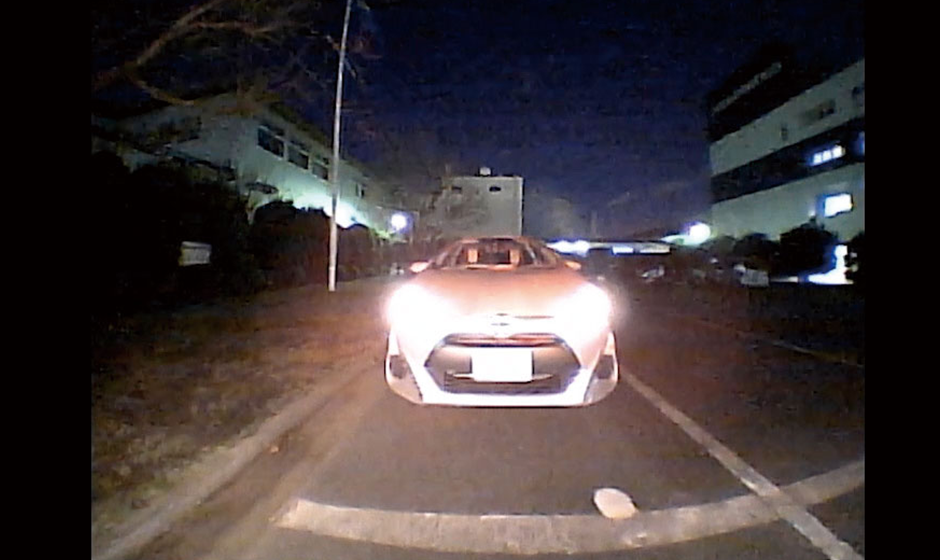

W/O HDR

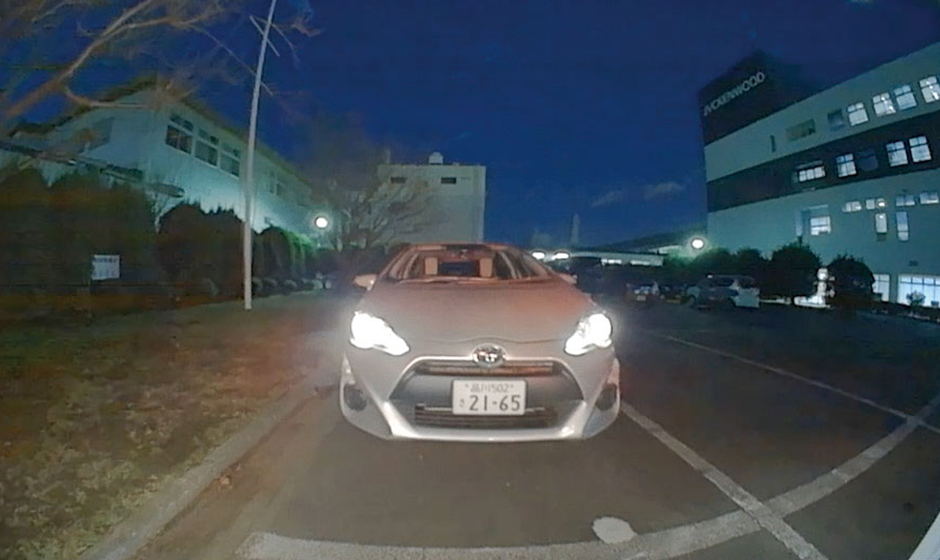

WITH HDR
12V & 24V Compatible
Cameras work with both 12V and 24V applications.
General Features
| Photographed Image | HD (1280 x 720) |
|---|---|
| Lens | Wide angle, focal length: 1.86mm F:2.0 |
| Frame Rate | 30fps |
| Angles of View | Horizontal 180°/ Vertical 103° |
| Operating Voltage | 12V/24V |
| Operating Temperature | -22℉ to +185℉ / -30℃ to +85℃ |
| IPX | IP67 |
| Output | HD-TVI |
| Weight | 0.073lbs / 33.2g (without cable) |
| Dimensions (W x H x D) | 1-1/4" x 15/16" x 1" / 31.1mm x23.0mm x25.2mm |
| Cable Length | |
| Camera Unit side | 9.84ft / 3m |
| DC Box Unit side | 19.69ft / 6m |
| Other | 1.64ft / 0.5m |
1 year warranty
