Kenwood DRV-A610WDP 2-Channel Compact 4K HD Dash Camera with 2" Display, Wi-Fi, and GPS

• compact 4K HD dash cam with rear-view camera
• 2" full-color LCD display
• includes 26-foot power and video cable for rear-view cam
• also includes 64GB microSD card, vehicle power cable, and two mounts (3M tape or suction cup)
• built-in Wi-Fi for wireless sharing with mobile devices using Kenwood's dash cam app
• dash cam records video files up to 3840 x 2160p
• built-in GPS
• built-in G-sensor

Specifications:

• parking mode recording with CA-DR1030 hardwire kit (not included)
• built-in capacitor saves video files when power is interrupted
• accepts microSD cards up to 256GB
• recording resolution: 4K HD (front camera); 2K HD (rear-view)
• rear camera weather-resistance rating: IP67
• viewing angles: 113° horizontal x 60° vertical (dash cam); 105° horizontal x 57° vertical (rear cam)
• dimensions: 2.3"W x 1.68"H x 0.96"D (dash cam); 1.1"W x 1.25"H x 1.5"D (rear-view cam)

High Definition Recording & Wireless Link

Dual Camera package is equipped with 8.3 Megapixel 4K (Front Camera) and 3.7 Megapixel Wide Quad Hi-Vision (Rear Camera) recording and provides easy data transfer to your smartphone through Wireless Link.

•

  GPS Integrated Dashboard Camera
  Front & Rear Camera Package

  DRV-A610WDP
  • 8.3M & 3.7M Recording
  • 2.0" LCD Display
  • WDR (Front) HDR (Rear)

  • Wireless Link
  • Built-in G-Sensor & GPS
  • Parking Mode Recording*

  • Built-in Motion Sensor*
  • 64GB microSD Included
  • IP67 (Rear Cam)


  *Parking Mode Recording & Mortion Detection Recording requires optional hardwire kit: CA-DR1130

8.3 & 3.7 Megapixel Recording

8.3 & 3.7 Megapixel Recording provides High Resolution Recording

8.3 & 3.7 Megapixel High Definition recording captures clear video even while driving.

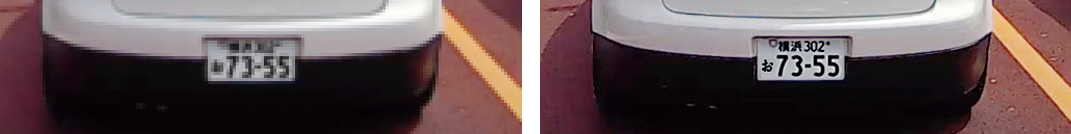

Capable of capturing a clear image of a license plate

Simulated Pictures

---

HDR (High Dynamic Range) &
WDR (Wide Dynamic Range) for Backlighting

Easily records clear images in dark or well lit settings without underexposing or overexposing the image.



Simulated Pictures

---

Front & Rear View Recording

The DRV-A610WDP includes 2 dash cams: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time. The rear dash cam includes a 26’ cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or outside of the vehicle where you would like to record.

---

Supports micro SDXC/SDHC

• MicroSDXC/SDHC card 8GB to 256GB supported.
• SD Card Recorded File Capacity
• 32GB Micro SD = 120 mins of recording
• 64GB Micro SD = 240 mins of recording
• 128GB Micro SD = 480 mins of recording
• 256GB Micro SD = 960 mins of recording
• *Based on default front recording settings.

---

26'(8m) Rear Camera Cable

26' (8m) power & video cable enable you to install the rear camera inside or outside of your car, truck, or RV.



---

12V & 24V Compatible



Cameras work with both 12V and 24V applications.

Compact Front & Rear Cameras

Compact camera provides for a stealthy look and easier installation.

Front Camera

Rear Camera

Wireless Link

Access Your Dash Cam Data Wirelessly



Wireless Link App
KENWOOD DASH CAM MANAGER can be used to remote control and live stream preview in a short distance or download and review videos from DRV-A610W. With its mapping function, users can view the route, speed, latitude, longitude, and direction of the drive at the time.
KENWOOD DASH CAM MANAGER supports OTA wireless firmware updates through your smartphone.
(Operating System Minimum Requirements: iOS 15 and above / Android 10 and above)







KENWOOD VIDEO PLAYER

The KENWOOD VIDEO PLAYER is a desktop software for displaying video recorded with this device. Simply download the installer from https://www.kenwood.com/cs/ce/, then install according to the on-screen instructions.



PC Requirements
OS: Microsoft Windows 11, Windows 10*
*Microsoft Visual C++ must be installed.
*DirectX XAudio2 must be installed.
OS: Apple Mac OS X 12 (Monterey) or later Microsoft, Windows, and DirectX are registered

Enhanced Vehicle Monitoring & Protection

G-sensor & Built-in GPS

The DRV-A610W is equipped with a G-Sensor designed to detect a collision, and GPS that records speed, latitude, and longitude.



---

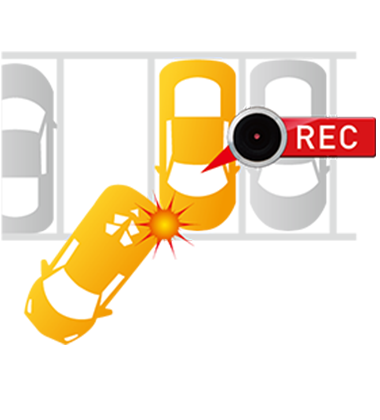

Parking Mode Recording

When the vehicle is parked and turned off, parking mode becomes active.If the vehicle is subject to a collision or other physical impact, the cameras power on and automatically record 30 seconds of video.
Optional CA-DR1130 Hardware kits requires for Parking Mode Recording.

Motion Detection Recording

In standby mode, if the device detects any moving objects, the camera will automatically record a 30-second video and then stop recording until there are no more moving objects.
Optional CA-DR1130 Hardware kits requires for Motion Detection Recording.



*Optional hardwire kit: CA-DR1130

---

Super Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.



Adjustable Installation Settings

IP67 Waterproof & Dustproof

The Rear Camera carry an IP67, meaning that camera can be submerged in up to 3.3 feet of water for 30 minutes.
The Camera is also fully sealed and protected against dust entry.



---

2 Rear Camera Brackets Included for
Various Installation

Adhesive & Screw Bracket







Double-joint Bracket



---

Adjustable Mounting Holder (Rear Camera)

Adjustable Rear Camera mounting holder enables to change
the viewing position changes to various angles.
