The KENWOOD KFC-1696PS Performance Series 6.5 In. 2 Way Speaker System is an ideal upgrade for your muddy factory sound. Kenwood has incorporated new technology into these speakers to give you the best sonic bang for your buck. The Diamond Array Pattern woofer cones enhance sound and reduce distortion. The Sound Field Enhancer tweeter creates strong frontward sound as well as a wider sound field in 5 kHz and higher frequencies. And the Acoustic Sound Harmonizer produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel. Plus, the tweeter height is designed to be as low as possible, allowing these two 6.5 in. 2 way speakers to easily fit in most factory locations.
Specifications:
- 6-1/2" 2-way speakers (pair)
- polypropylene woofer cone with rubber surround
- 1-3/16" PEI balanced dome tweeter
- Acoustic Sound Harmonizer improves response in the 3000 to 4000 Hz range
- Sound Field Enhancer widens sound field
- grilles included
- handles up to 100 watts RMS (320 watts peak power)
- impedance: 4 ohms
- frequency response: 75-24,000 Hz
- sensitivity: 88 dB
- top-mount depth: 1-15/16"
- warranty: 1 year
Diamond Array Pattern Woofer Cone
This technology enhances sound and reduces distortion.

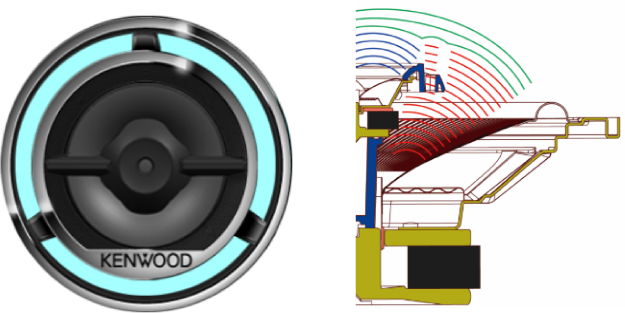

Sound Field Enhancer
This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.
Acoustic Sound Harmonizer
Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

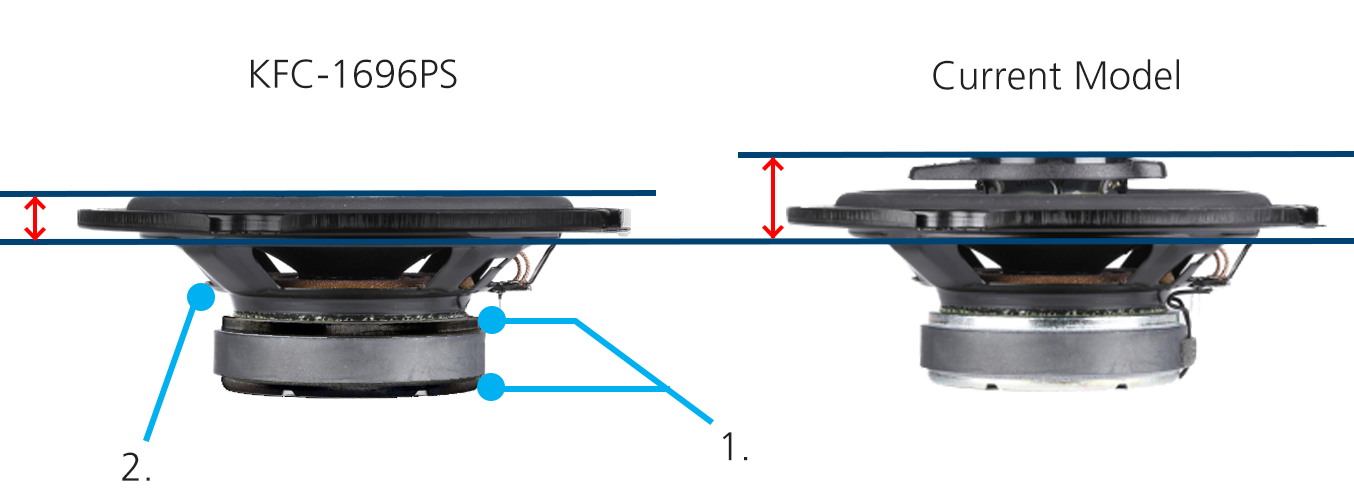

Factory Location Fit
The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.
1. Black Painted Yoke and Plate
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.
2. New Woofer Damper Shape
Stress leveling points increase durability and provide a smoother sound response.
New Frame Design
Enlarged open area provides more bass and cleaner sound.
General Features
| Peak Input Power | 320W |
|---|---|
| Rated Input Power | 100W |
| Impedance | 4Ω |
| Woofer Features | 6-1/2 inch Polypropylene Cone |
| Tweeter Features | 1-3/16 inch Balanced Dome |
| Specifications | |
| Sensitivity | 88 dB/ W / m |
| Frequency Response | 75Hz -24KHz |
| Cutout Diameter | 4-7/8 inch |
| Mounting Depth | 1-7/8 inch |
| Gross Weight | 3.6lbs |
| Weight of Magnet(Woofer) | 0.6lbs |
