These KFC-6986PS 6"x9" speakers rock a polypropylene cone with a diamond array pattern, which minimizes distortion, while a treated foam surround ensures overall durability. All the musical details are handled by the balanced dome tweeter and two supertweeters, and dispersion is improved by Kenwood's proprietary Sound Field Enhancer.
Kenwood's Acoustic Sound Harmonizer uses slots on the mount housing the tweeters to improve the transition to the higher frequencies, so you'll experience a smoother sound overall. Grilles are included for custom installations.
Features:
- 6"x9" 4-way speakers (pair)
- polypropylene woofer cone with treated foam surround
- 1-3/4" balanced dome tweeter
- 13/16" and 1/2" ceramic dome supertweeters
- Acoustic Sound Harmonizer improves response in the 3000 to 4000 Hz range
- Sound Field Enhancer widens sound field
- grilles included
- handles up to 140 watts RMS (600 watts peak power)
- impedance: 4 ohms
- frequency response: 60-22,000 Hz
- sensitivity: 88 dB
- top-mount depth: 3-3/16"

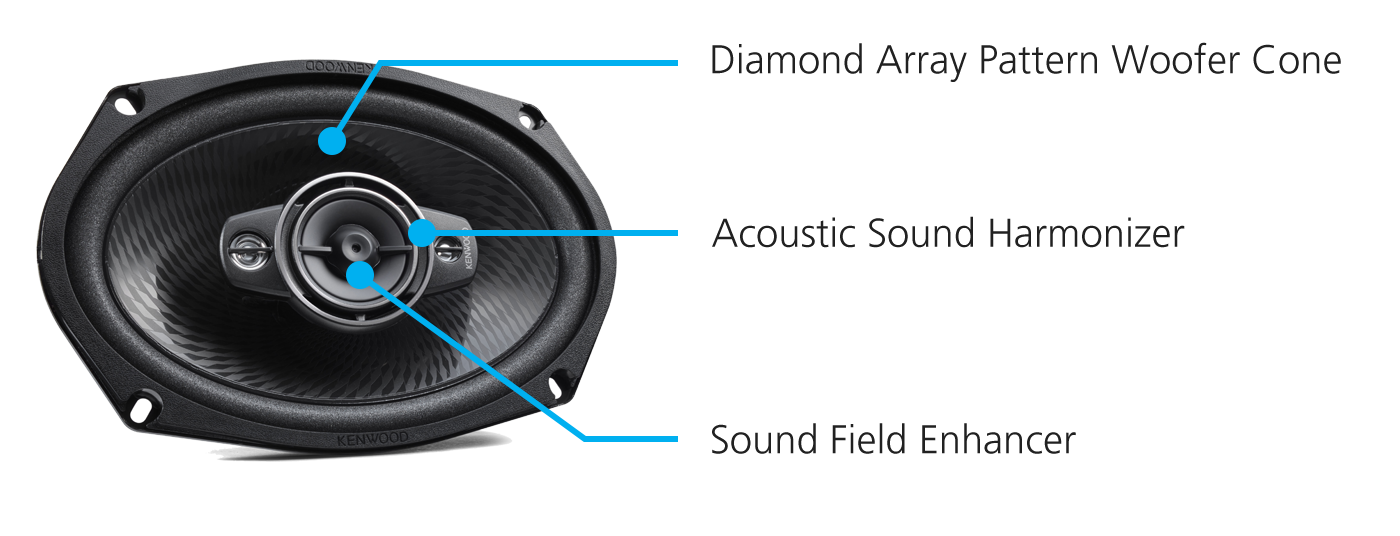

Diamond Array Pattern Woofer Cone
This technology enhances sound and reduces distortion.
Sound Field Enhancer
This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.
Acoustic Sound Harmonizer
Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

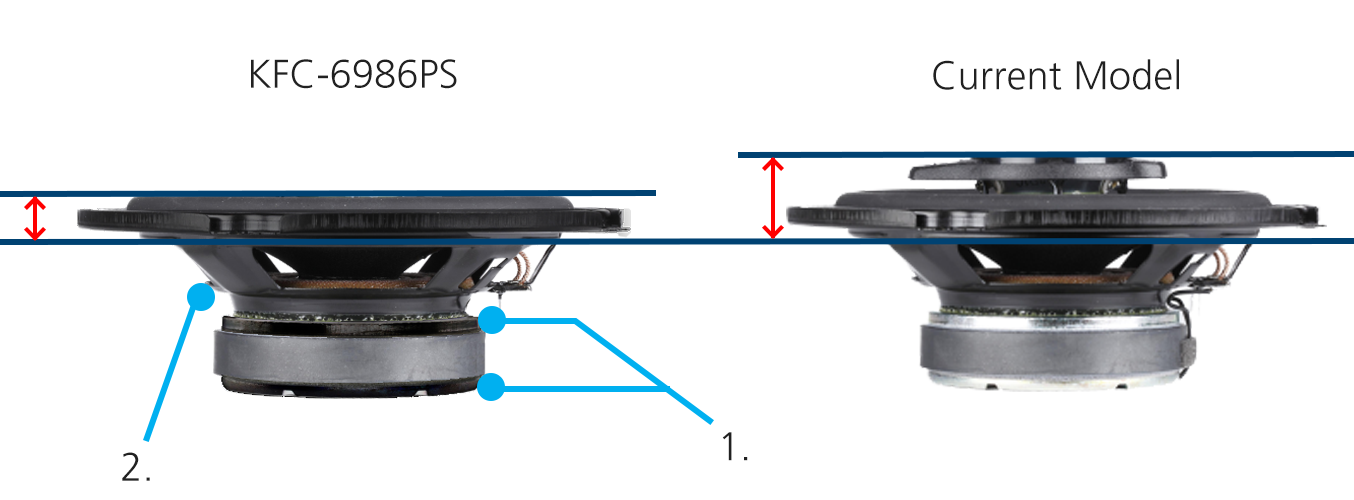

Factory Location Fit
The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.
1. Black Painted Yoke and Plate
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.
2. New Woofer Damper Shape
Stress leveling points increase durability and provide a smoother sound response.
New Frame Design
Enlarged open area provides more bass and cleaner sound.
General Features
| Peak Input Power | 600W |
|---|---|
| Rated Input Power | 140W |
| Impedance | 4Ω |
| Woofer Features | 6 x 9 inch Polypropylene Cone |
| Tweeter Features | 1-3/4 inch Balanced Dome |
| Super Tweeter | 4/5 inch Ceramic Tweeter |
| Super Tweeter Features | 1/2 inch Ceramic Tweeter |
| Specifications | |
| Sensitivity | 88 dB/ W / m |
| Frequency Response | 60Hz -22KHz |
| Cutout Diameter | 5-7/8 x 8-5/8 inch |
| Mounting Depth | 3-3/16 inch |
| Gross Weight | 6.4lbs |
| Weight of Magnet(Woofer) | 0.75lbs |
