These KFC-5796PS 5"x7" speakers rock a polypropylene cone with a diamond array pattern, which minimizes distortion, while a rubber surround ensures overall durability. All the musical details are handled by the balanced dome tweeter, and dispersion is improved by Kenwood's proprietary Sound Field Enhancer.
Features:
- 5"x7" 2-way speakers (pair)
- polypropylene woofer cone with rubber surround
- 1-3/16" balanced dome tweeter
- Acoustic Sound Harmonizer improves response in the 3000 to 4000 Hz range
- Sound Field Enhancer widens sound field
- grilles included
- handles up to 80 watts RMS (320 watts peak power)
- impedance: 4 ohms
- frequency response: 64-24,000 Hz
- sensitivity: 88 dB
- top-mount depth: 2-1/16"

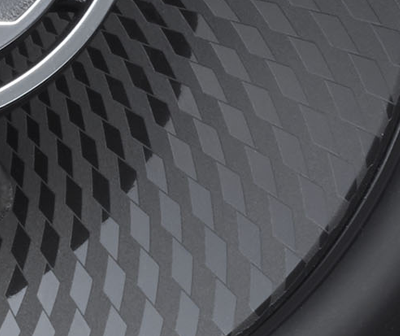

Diamond Array Pattern Woofer Cone
This technology enhances sound and reduces distortion.

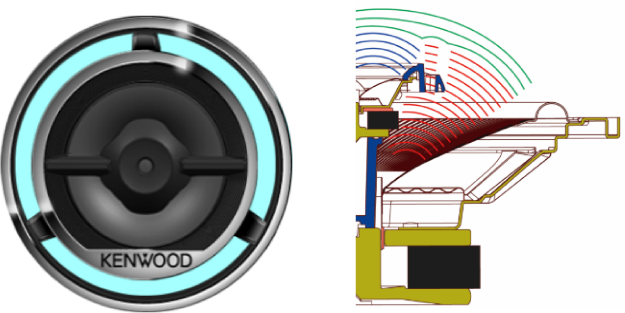

Sound Field Enhancer
This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.
Acoustic Sound Harmonizer
Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

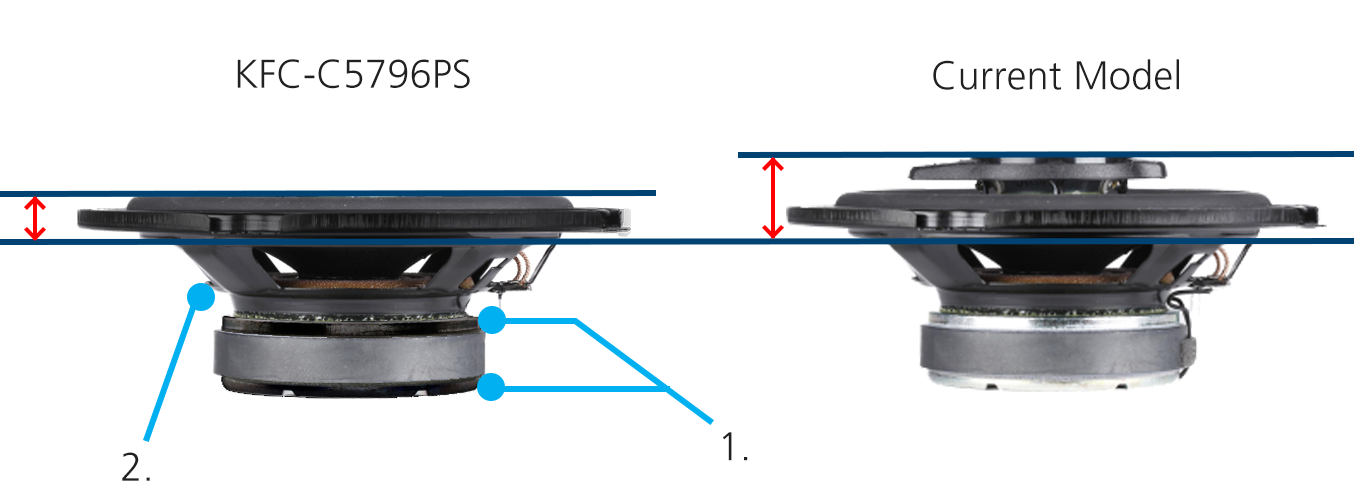

Factory Location Fit
The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.
1. Black Painted Yoke and Plate
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.
2. New Woofer Damper Shape
Stress leveling points increase durability and provide a smoother sound response.
General Features
| Peak Input Power | 320W |
|---|---|
| Rated Input Power | 80W |
| Impedance | 4Ω |
| Woofer Features | 5 x 7 inch Polypropylene Cone |
| Tweeter Features | 1-3/16 inch Balanced Dome |
| Specifications | |
| Sensitivity | 88 dB/ W / m |
| Frequency Response | 64Hz -24KHz |
| Cutout Diameter | 4-7/8 x 7-3/16 inch |
| Mounting Depth | 2-1/16 inch |
| Gross Weight | 2.8lbs |
| Weight of Magnet(Woofer) | 0.42lbs |
